    View and customize access logs

    Page as Markdown
    Configure per-request structured access logs with CEL-based filtering and field enrichment.
    About access logging
    Access logs, sometimes referred to as audit logs, represent all traffic requests that pass through the gateway proxy. The access log entries can be customized to include data from the request, the routing destination, and the response.
    Data that can be logged
    Access log content is controlled by CEL (Common Expression Language) expressions. You can filter which requests are logged and define custom attributes from the request and response.
    For logging, CEL exposes these variable groups when enabled or applicable:
    • request: method, URI, host, path, headers, body, and timing
    • response: status code, headers, and body
    • source: client address, port, and TLS identity
    • backend: backend name, type, and protocol
    • Auth and metadata: jwt, apiKey, or basicAuth, plus extauthz and extproc metadata
    • LLM: model, provider, token counts, and optional prompt/completion
    • MCP: tool, prompt, and resource name and target
    Use the filter field in the AgentgatewayPolicy to filter which requests are logged by path, response code, or any other request attribute. Use the attributes list to add or remove log fields by using CEL expressions. For the full variable table, available functions, and examples, see the CEL expressions reference.
    Before you begin
    1. Set up an agentgateway proxy.
    2. Install the httpbin sample app.
    1. Set up the OTel stack to export logs to an OTel collector and forward them to Loki.
    Enable access logs
    Access logs are written to stdout automatically for every request that passes through the gateway proxy. No policy configuration is required to enable them.
    1. Send a request to the httpbin app on the www.example.com domain.



      curl -i http://$INGRESS_GW_ADDRESS:80/get -H "host: www.example.com"
    2. Check the gateway logs to see the access log entry for the request.
      kubectl -n agentgateway-system logs deployments/agentgateway-proxy | tail -1
      Example output:
      info	request gateway=agentgateway-system/agentgateway-proxy
listener=http route=httpbin/httpbin endpoint=10.244.0.4:8080
src.addr=127.0.0.1:46886 http.method=GET http.host=www.example.com
http.path=/get http.version=HTTP/1.1 http.status=200
protocol=http duration=0ms

    To filter which requests are logged or customize log fields, see Filter access logs and Add and remove log attributes. To export access logs to an external backend over OTLP, see Export logs over OTLP.
    Filter access logs
    Use a CEL expression to log only a subset of requests. Requests that do not match the expression are not logged.
    1. Create an AgentgatewayPolicy resource with a filter expression. The following example produces access logs only for requests with a response code of 400 or greater.
       1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

      kubectl apply -f- <<EOF
apiVersion: agentgateway.dev/v1alpha1
kind: AgentgatewayPolicy
metadata:
  name: access-logs
  namespace: agentgateway-system
spec:
  targetRefs:
  - group: gateway.networking.k8s.io
    kind: Gateway
    name: agentgateway-proxy
  frontend:
    accessLog:
      filter: 'response.code >= 400'
EOF
    2. Send a request that returns a 400 response code.



      curl -i http://$INGRESS_GW_ADDRESS:80/status/400 -H "host: www.example.com"
    3. Check the gateway logs and verify that an access log entry was written for the 400 request.
      kubectl -n agentgateway-system logs deployments/agentgateway-proxy | tail -1
      Example output:
      info	request gateway=agentgateway-system/agentgateway-proxy
listener=http route=httpbin/httpbin endpoint=10.244.0.4:8080
src.addr=127.0.0.1:46886 http.method=GET http.host=www.example.com
http.path=/status/400 http.version=HTTP/1.1 http.status=400
protocol=http duration=0ms

    4. Send a successful request.



      curl -i http://$INGRESS_GW_ADDRESS:80/get -H "host: www.example.com"
    5. Check the logs again and verify that no new entry appears. Because the response code was 200, the filter expression response.code >= 400 does not match and no log is written.
      kubectl -n agentgateway-system logs deployments/agentgateway-proxy | tail -1
      Example output (the last entry is still the 400 request from step 2):
      info	request gateway=agentgateway-system/agentgateway-proxy
listener=http route=httpbin/httpbin endpoint=10.244.0.4:8080
src.addr=127.0.0.1:46886 http.method=GET http.host=www.example.com
http.path=/status/400 http.version=HTTP/1.1 http.status=400
protocol=http duration=0ms

    Add and remove log fields
    You can add custom fields to every access log line by using CEL expressions that are evaluated against the request and response context. You can also remove default fields that you do not need.
    1. Create an AgentgatewayPolicy resource that adds custom attributes and removes a default field. The following example adds 3 fields to every access log entry:
      • user_id: Extracts the value of the x-user-id request header.
      • env: Adds a static string of production.
      The example also removes the http.host default field.
       1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

      kubectl apply -f- <<EOF
apiVersion: agentgateway.dev/v1alpha1
kind: AgentgatewayPolicy
metadata:
  name: access-logs
  namespace: agentgateway-system
spec:
  targetRefs:
  - group: gateway.networking.k8s.io
    kind: Gateway
    name: agentgateway-proxy
  frontend:
    accessLog:
      attributes:
        add:
        - name: user_id
          expression: 'request.headers["x-user-id"]'
        - name: env
          expression: '"production"'
        remove:
        - http.host
EOF
    2. Send a request with an x-user-id header.



      curl -i http://$INGRESS_GW_ADDRESS:80/get -H "host: www.example.com" -H "x-user-id: user-123"
    3. Check the gateway logs and verify you can see the custom fields in your log entry, and that the http.host field is absent.
      kubectl -n agentgateway-system logs deployments/agentgateway-proxy | tail -1
      Example output:
      info	request gateway=agentgateway-system/agentgateway-proxy
listener=http route=httpbin/httpbin endpoint=10.244.0.4:8080
src.addr=127.0.0.1:46886 http.method=GET http.path=/get
http.version=HTTP/1.1 http.status=200 protocol=http duration=0ms
user_id="user-123" env="production"

    View access logs in Loki
    If you set up the OTel stack, the opentelemetry-collector-logs deployment is ready to receive access logs via OTLPs. Configure the agentgateway proxy to send access logs to it, then query them in Grafana through Loki.
    1. Create a AgentgatewayPolicy resource that points the agentgateway proxy at the OTel collector.
      kubectl apply -f- <<EOF
apiVersion: agentgateway.dev/v1alpha1
kind: AgentgatewayPolicy
metadata:
  name: access-logs
  namespace: agentgateway-system
spec:
  targetRefs:
  - group: gateway.networking.k8s.io
    kind: Gateway
    name: agentgateway-proxy
  frontend:
    accessLog:
      otlp:
        backendRef:
          name: opentelemetry-collector-logs
          namespace: telemetry
          port: 4317
        protocol: GRPC
EOF
      Tip
      To filter which logs are exported, add custom fields, or send logs to a different backend, see Export logs over OTLP.
    2. Open Grafana.
      1. Port-forward the Grafana service.
        kubectl port-forward svc/kube-prometheus-stack-grafana -n telemetry 3000:80
      2. Open Grafana at http://localhost:3000.
      3. Log in to Grafana with the admin username prom-operator password .

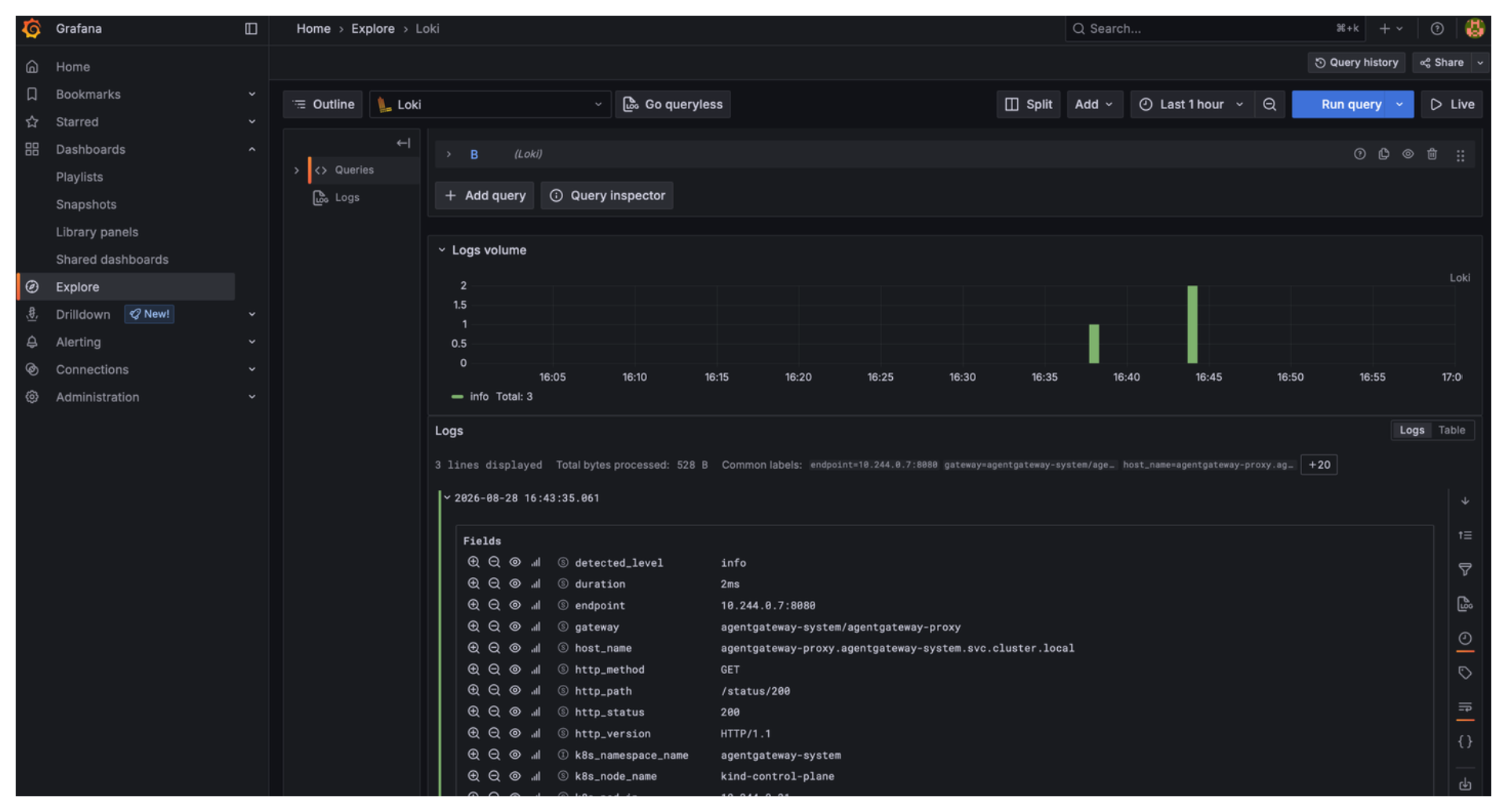

    3. Go to Explore and select Loki as the data source.
    4. Use the Label browser to find your log stream, then add filters to narrow results. Each proxied request is stored as a log entry with structured metadata attributes such as http.method, http.path, and http.status. Use the following filter patterns:
      GoalLogQL filter
      Requests to a specific path| http_path="/get"
      Error responses (4xx/5xx)| http_status="400" or | http_status="500"
      Logs from a specific gateway| gateway="agentgateway-system/agentgateway-proxy"
    Cleanup
    You can remove the resources that you created in this guide. Run the following command.
    kubectl delete AgentgatewayPolicy access-logs -n agentgateway-system
    Export logs over OTLP
